PastPerfect Exporter

The PastPerfect Exporter (PPE) is a software program that exports PastPerfect records from a Windows 10 computer and imports them into the Digital Archive as hybrid items.


This documentation is intended for administrators and developers who will set up and maintain the PastPerfect Exporter. It assumes that you have read the documentation for AvantHybrid.

To simply use the PPE, go to the ppexport folder on your PastPerfect computer and double-click on the ExportPastPerfectToDigitalArchive.bat file. The PPE will run and display progress and statistics in a window. When PPE is finished, you can close the window. Your PastPerfect data will be synchronized with your Digital Archive.

Important: After changing records in PastPerfect, or adding images to records, be sure to run PastPerfect's Web Publishing utility to synchronize your local PastPerfect data and images with PastPerfect Online. If you don't do this, the data and images exported by PPE into the Digital Archive will become out of sync with the data and images on PastPerfect Online.


What gets exported

The PPE always exports the following columns from PastPerfect's catalog tables:

  • PPID
  • OBJECTID
  • OBJNAME converted to Nomenclature natural order
  • CAT with A, L, O, and P changed to Archives, Library, Objects, and Photos
  • SUBJECTS
  • TITLE
  • WEBINCLUDE as 1 or 0

The PPE rejects any records where:

  • WEBINCLUDE is blank unless the private config option is yes
  • TITLE is blank
  • OBJNAME is blank
  • OBJECTID is blank
  • OBJECTID is not unique

The PPE exports these pseudo columns:

  • IMAGE as a semicolon separated list of the record's image file names prefixed by their PastPerfect Online (PPO) folder number, for example 008/00105612161.jpg
  • THUMB as a semicolon separated list of the record's thumbnail file names prefixed by their PPO folder number and their PPO thumbnails folder name, for example
    008/thumbs/00105612161.jpg
  • SITE as the PPO folder containing the source record, for example archive/<hybrid-id>

The PPE Exports other columns as specified by the fields config option.

As example of what the PPE exports is shown below as a JSON string.

{'PPID': 'B427FDC4-5A2A-42AA-A146-337349578482', 'OBJECTID': '001-056-1-2161',
'OBJNAME': 'Annual Meeting report', 'TITLE': 'Annual Meeting of the Garden Club of America',
'IMAGE': '008/00105612161.jpg', 'THUMB': '008/thumbs/00105612161.jpg', 'WEBINCLUDE': '1',
'SITE': 'archive/<hybrid-id>', 'CAT': 'Archives', 'SUBJECTS': 'Gardens;History',
'DATE': '1934', 'PLACE': '', 'CREATOR': '', 'PUBLISHER': '', 'COLLECTION': '',
'DESCRIP': 'Yellow bound yearbook program with pencil reading Garden Club of Mt. Desert.'}

pp_export.config

The export_pp.config file is the "user interface" to the PPE. You edit this file to control how the PPE operates. Below is a sample file followed by an explanation of each option.

[data]
pp5data = \\NAS\PastPerfect\Data
fields =
    DATE
    PLACE
    CREATOR
    PUBLISHER
    COLLECTION
    DESCRIP

[request]
id = ahs
password = aQ75RkG9
url = http://yourdomain/digitalarchive/avant/remote

[admin]
bulk = no
catalog = all
details = no
dryrun = no
force = no
limit = 0
private = no
trace = no

Data options

pp5data

The pp5data option specifies the path to the PastPerfect installation's Data folder on the Windows computer or network that hosts PastPerfect.

Examples:
C:\pp5\Data
\\NAS\PastPerfect\Data

You can determine the folder location by going to the PastPerfect System Information screen and looking at the Data Folder field in the Computer Information section.

fields
The fields option lets you specify which PastPerfect catalog table columns PPE will export in addition to the fields that it always exports (see what gets exported) above.

Request options

id
The id option must be three to six characters that exactly match the Import ID option on the AvantHybrid configuration page.
password
The passsword option must be eight characters that exactly match the Import Password option on the AvantHybrid configuration page.
url
The url option specifies the URL of the remote request page on the Digital Archive server. It is the URL of the server followed by /avant/remote.

Admin options

bulk

The bulk option should always be set to no. The only exception is if you will be exporting hundreds or thousands of items and you want to speed up the export process. This would be the case for a new installation or when using the force option.

Read about AvantHybrid bulk import feature to understand how it works. As noted in that documentation, when you use this option, you'll need to rebuild your Digital Archive Elasticsearch indexes when you are done importing.

catalog

The catalog option must be set to either all or to one of the PastPerfect catalog names ARCHIVES, LIBRARY, OBJECTS, and PHOTOS. Any other value will result in an error.

The only time you would specify a specific catalog would be if you were doing an initial export and wanted to export the catalogs one at a time to make sure that everything looks good for one catalog before proceeding with another.

details

Set the details option to yes if you want to see additional statistics:

  • OBJECTIDs for records with no Title
  • OBJECTIDs for records with no OBJNAME
  • OBJECTIDs for records with non-unique OBJECTID (count appears in parentheses)
dryrun
Set the dryrun option to yes when you want to see what actions PPE will take, but without actually calling AvantHybrid to import into the Digital Archive. This is a quick and safe way to learn what hybrid items will get added, updated, or deleted in the Digital Archive. When you are happy with the actions, set the option to no.
force
Force should always be set to no. The only exception is if for some reason you need to force every hybrid item in your Digital Archive to get updated even if its corresponding PastPerfect record has not changed. See the section below on adding a new export column as an example of when you might use this option.
limit
Limit should normally be set to 0 which means there is no limit on how many source records will be exported to the Digital Archive. You can set the limit to a number when you only want to export a limited number or records. This option can be combined with the dryrun option when you are just trying to get a sense of what will get exported without operating on the entire set of PastPerfect records.
private
The private option controls whether PastPerfect records that have their Web Export option unchecked should to be exported to the Digital Archive. Set the option to yes to export them as non-public Digital Archive hybrid items or set it to no to skip them during export.
trace
This is a developer option that can be set to yes to have AvantHybrid report additional information about its response to a request.

How it works

Here is an explanation of the algorithm PPE performs when you run the pp_export.exe program.

  • Make a request to AvantHybrid to fetch a list of all the hybrid items in the Digital Archive along with the date and time when each was added or last updated.
  • Read data from the PastPerfect LEXICON table to get a list of Nomenclature terms.
  • Read data from the PastPerfect MEDIA table to get the names of files attached to records.
  • Read data from each of the PastPerfect catalogs (ARCHIVE, LIBRARY, OJBECTS, and PHOTOS).
  • Create a source record for each catalog record and add it to a list of source records, skipping any that are rejected. (see the what gets exported section above).
  • Analyze the data, convert Nomenclature terms from inverted to natural order, and report statistics as shown in the next section below.
  • Loop over the source records one at a time. For each source record:
    • If it does not exist in the Digital Archive, mark it to be added.
    • If it exists in the Digital Archive, but has been changed in PastPerfect since it was last added or updated in the Digital Archive, mark it to be updated.
    • Otherwise mark the source record as unchanged.
  • Loop over the hybrid items in the Digital Archive. For each hybrid item:
    • If it has no corresponding source record, add a placeholder record to the list of source records and mark it to be deleted.
  • Loop over the source records. For each that has been marked as add, update or delete, make an HTTP request to AvantHybrid to perform the action. Ignore those marked as unchanged.

If the algorithm gets interrupted before completion, it will pick up where it left off the next time PPE is run. For example, suppose that while exporting 100 records, the computer crashes, or the internet goes down, after only 25 records have been imported into the Digital Archive. When the system is working and PPE is run again, PPE will detect that only 75 records have to be imported and import them. This is possible because the PPE algorithm is stateless, meaning that it can always figure out what it needs to do by analyzing the data in both PastPerfect and in the Digital Archive without needing to know what state it was in when it got interrupted.

Statistics

Each time PPE runs, it reports statistics that you can use to determine what improvements you need to make to your PastPerfect data. By copy/pasting the statistics into some kind of a log document, you can maintain a record of how your PastPerfect collection has grown and/or gotten cleaned up over time.

Sample statistics are show below for an organization having the Import ID ahs.

Read data from ahs PastPerfect catalogs: C:/pp5/Data/
=======================================================
Read 13766 records from LEXICON3.DBF............................ 0.41s
Read 7704 records from MEDIA.DBF................ 0.69s
Read 5995 records from ARCHIVES.DBF............ 9.37s
Read 887 records from LIBRARY.DBF.. 1.28s
Read 1453 records from OBJECTS.DBF... 1.98s
Read 6809 records from PHOTOS.DBF........... 10.03s
Completed in 23.86 seconds

PastPerfect statistics for ahs on 2020-09-15
==============================================
Examined 15144 source records
Found 5602 Object Names that are not in Nomenclature
Accepted 12458 source records
Skipped 2686 source records because:
   301 records have Web Export unchecked
   2385 records have no Title
   147 records have no Object Name
   896 records have no Object ID
   244 records use a non-unique Object ID:

Adding a new export column

Ideally, you should plan ahead so that your initial export will contain all of the PastPerfect columns that you want to have appear in the Digital Archive. However, if later you decide you want to add a column, follow these steps.

  • Add an element for the column in Omeka
  • Add the element to the Column Mapping option in the AvantHybrid configuration
  • Add the column to the the fields option in the pp_export.config
  • Set the force configuration option to yes
  • Set the bulk configuration option to yes
  • Run the PPE
  • Set the force configuration option to no
  • Set the bulk configuration option to no
  • Rebuild your Digital Archive Elasticsearch indexes

Assuming that catalogs is set to all and limit is set to 0, the steps above will update every hybrid item in the Digital Archive to include the new column. Be aware that if you have thousands of PastPerfect records, this could take a long time. Also, because you'll be using the bulk option, you'll need to rebuild your Elasticsearch indexes after the updates finish as explained for the bulk option.

PastPerfect Exporter software

The PPE is implemented as a Python 3 program that was developed by George Soules of AvantLogic Corporation. It was written for organizations who want to continue using PastPerfect as their primary collections management software, but also want to share their collections online with other other organizations that use the Digital Archive for online sharing. It is not intended for use as a PastPerfect migration tool, nor is is suitable for that purpose since it can only export by making HTTP requests one record at a time to the Digital Archive's AvantHybrid plugin. The source code is available upon request as open source for use in non-commercial applications.

The program consists of a single Python script named export_pp.py that imports a Python package named avant_dbfread which is a near-exact copy of Ole Martin Bjorndalen's dbfread. The only modification to dbread is to the FieldParser.decode_text method so that it handles a UnicodeDecodeError exception without terminating processing. All direct access to and reading of the PastPerfect dBase files is performed by the dbfread logic.

export_pp.exe

To allow the exporter to run on a Windows 10 computer where PastPerfect is used, without having to have Python 3 installed on that same computer, export_pp.py gets turned into a standalone .exe program using pyinstaller. The resulting export_pp.exe file can simply be copied to and run on the Windows computer. It requires no installer and no changes to the Windows registry.

Follow these steps to create export_pp.exe:

  • Go to the folder containing export_pp.py
  • Right click and choose Git Bash Here
  • Type pyinstaller --onefile export_pp.py
  • pyinstaller will create in that folder \dist\export_pp.exe
  • Copy export_pp.config to the dist folder
  • Edit export_pp.config if necessary

Follow these steps to run export_pp.exe:

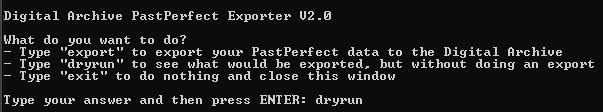

  • Open a Windows Command Prompt window
  • CD to the dist folder
  • Type export_pp.exe

If you don't run the program from a Command Prompt window, it will automatically open a Command Prompt window to run in, but the window will close when execution ends and you won't be able to see the results.

To make it easy for the PastPerfect administrator to run the PPE, do the following:

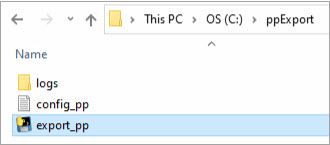

  • Create a folder on the PastPerfect computer called ppexport
  • Create a subfolder called ppexport\DigitalArchive
  • Copy export_pp.exe and export_pp.config to the DigitalArchive folder
  • In the ppexport folder, create a batch file named ExportPastPerfectToDigitalArchive.bat with contents similar to one of the examples shown below.
  • Instruct the administrator to go to the ppexport folder and run the batch file
pushd \\NAS\ppexport\DigitalArchive
cmd /K export_pp.exe
popd
CD /D C:\utilities\ppexport\DigitalArchive
cmd /K export_pp.exe

First-time export

Here are recommendations for how to approach a first-time export of all PastPerfect records into the Digital Archive.

  • Set the bulk option to yes
  • Set the limit option to 100
  • Set catalog to just one catalog
  • Run PPE
  • Rebuild the Digital Archive Elasticsearch indexes
  • Verify that everything looks good
  • Increase the limit or set it to 0
  • Repeat the steps above until all the catalogs have been exported
  • Set bulk to no
