AvantHybrid

The AvantHybrid plugin provides support for Digital Archive items that originate from, and are maintained in, another collection management program, such as PastPerfect, but are displayed by, and searchable from, the Digital Archive. They are called hybrid items because they are formed from two difference sources of data.

AvantLogic developed this plugin, along with the PastPerfect Exporter, to provide a way for organizations that use PastPerfect, to share their collections using the Digital Archive while continuing to perform collection management using PastPerfect.

AvantHybrid will work with data from any source database as long as the source records sent to AvantHybrid conform to the data format described later. The plugin has no knowledge of how PastPerfect works or how it stores its data.

Terminology

Hybrid item
A hybrid item is a Digital Archive item that corresponds to a source record that is stored in a source database.
Source database
A source database is a database that is separate from and external to the Digital Archive.
A source database stores source records. The dBase database used by PastPerfect is an example of a source database.
Source record
A source record is a source database record which has a corresponding hybrid item in the Digital Archive. The word "record" is a database term referring to a collection of fields about the same item in a database. While the terms record and item are synonymous, this AvantHybrid documentation uses record as a way to distinguish data stored in a source database from a hyrbid item's metadata stored in the Digital Archive.
Source database software
Source database software refers to a computer program that is used to add, edit, and delete records in a source database. PastPerfect is an example of source database software.
Image server
An image server is a web server that stores the images associated with the records in a
source database. Amazon S3 is an example of an image server. It is used by PastPerfect Online.

AvantHybrid features

The AvantHybrid plugin:

  • Imports data that is sent to it via HTTP requests. The import feature:
    • Creates new hybrid items for new source records added to the source database
    • Updates hybrid items whose source records have changed in the source database
    • Deletes hybrid items that no longer exist in the source database
  • Displays hybrid items in the Digital Archive by displaying an item's:
    • Metadata which AvantHybrid imported from the source database
    • Images located on the source database software's image server
  • Lets you attach files (such as a PDF or a zoomable image) to hybrid items
  • Lets you add relationships to hybrid items

Example

Here is an example to help tie together the features and terminology.

When you add a new source record and image in PastPerfect:

  • The PastPerfect source database software:
    • Adds a new record to PastPerfect's dBase source database
    • Stores the record's image on the local PastPerfect desktop computer or network
  • When you run PastPerfect's Web Publishing Wizard, PastPerfect uploads the image to the Amazon S3 image server used by PastPerfect Online
  • When you run the PastPerfect Exporter (PPE) to import data into the Digital Archive, AvantHybrid:
    • Responds to the add request sent to AvantHybrid from PPE via HTTP
    • Creates a new hybrid item corresponding to the new PastPerfect source record
    • Copies the source record's metadata to the Digital Archive
    • Records the URLs for the source record's image(s), but does not copy the image files to the Digital Archive (the images only ever exists on the Amazon S3 server)
  • When you view the hybrid item in the Digital Archive, the AvantHybrid plugin:
    • Displays the hybrid item's metadata from the Digital Archive
    • Makes a request to the Amazon S3 image server to display the hybrid item's images
  • When you later edit the source record's metadata in PastPerfect and then run PPE again, AvantHybrid completely replaces, not merges, the hybrid item's metadata with the data from the source record.

Important

Do not edit the metadata fields of hybrid items using the Digital Archive. Only make changes using the source database software. As explained in the last bullet above, metadata imported from a source record completely replaces existing hybrid metadata. As such, if you were to edit the hybrid item in the Digital Archive, a subsequent import of the data for that item would clobber your changes.

After making any changes to records in PastPerfect, or adding images to records, be sure to run PastPerfect's Web Publishing utility to synchronize your local PastPerfect data and images with PastPerfect Online. If you don't do this, the data and images exported by the PastPerfect Exporter into the Digital Archive will become out of sync with the data and images on PastPerfect Online.

Configuration options

AvantHybrid has these configuration options. Once they are properly set for your installation, you'll probably never need to update them again. A screenshot showing all the options appears later.

Image URL
Use this option to specify the base URL for hybrid images and thumbnails. AvantHybrid will append the values of each source record's <image> and <thumb> columns to form the URL for an image.
Site URL
Use this option to specify the base URL for hybrid records. This option is only required if the Site Element option is specified. AvantHybrid will append the value of each source records's <site> column to form the URL for a source record's online webpage.
Site Element

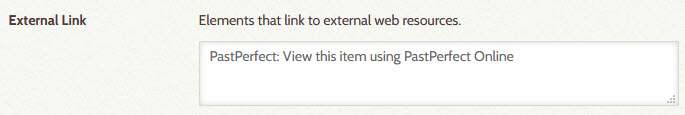

Use this option to specify the name of the Omeka element used to display a link to the webpage for a source record. If this option is used, the Site URL option must be specified. The element's name should be specified in the External Link option of the AvantElements plugin as shown in the screenshot below taken from the AvantElements configuration page. In the screenshot, the element's name is PastPerfect.

AvantHybrid configuration page

Import ID
This option specifies a three to six character site ID that must be passed when making an HTTP request to AvantHybrid to import a source record.
Import Password
This option specifies an eight character password that must be passed when making an HTTP request to AvantHybrid to import a source record.
Column Mapping

Use this option to associate source record columns with hybrid item element properties (shown in angle brackets) and with Omeka element names. The option requires that all of the following properties be mapped:

  • <hybrid-id> is an identifier that uniquely identifies a source record in the source database
  • <image> forms the URL for the source record's image when appended to Image URL
  • <thumb> forms the URL for the source record's thumbnail when appended to Image URL
  • <public> is a value of 1 if the hybrid item should be public
  • <site> forms a link to the source record's webpage when appended to Site URL

The mappings for these properties are highlighted in yellow in the screenshot that follows.

Use Common Vocabulary
Checking this option will cause AvantHybrid to attempt to convert Type and Subject values from each source record to Common Vocabulary terms. If the source record's Type or Subject value matches a Common Vocabulary leaf, AvantHybrid will change the value to the corresponding Common Vocabulary term. For example, it will automatically change , the source record Type Yearbook to Publication, Yearbook. If no match is found, AvantHybrid will prepend Other, to the value to indicate that it's not a Common Vocabulary term. For this to work, source leaf values must be in Nomenclature natural order (the PastPerfect Exporter automatically convert's PastPerfect's inverted order to natural order).
Delete Tables
WARNING: Checking this option will cause all of these configuration options, and all information about hybrid items, to be permanently deleted if you uninstall this plugin.

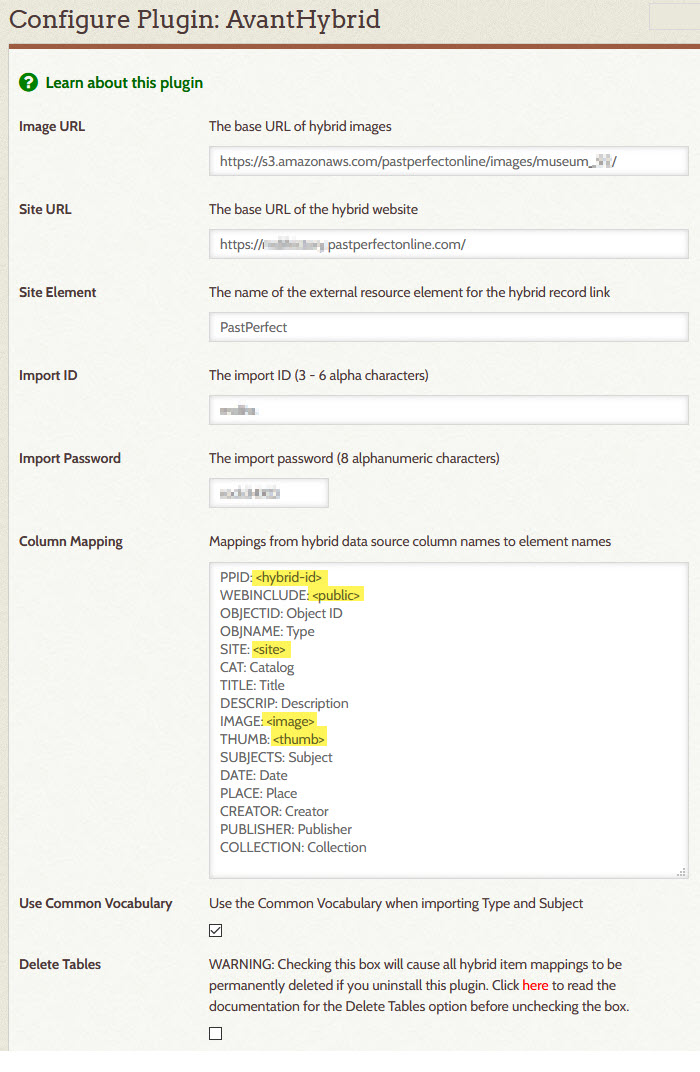

Here is a screenshot showing all of the AvantHybrid configuration options. The yellow highlighter points out required Column Mapping properties.

AvantHybrid configuration page

Data format

This section describes the format of the data that columns in source records must conform to.

<hybrid-id>

A number or text value that uniquely identifies a source record.

Example: 58DF9E02-0D98-429B-B9E8-666324969299

<image> and <thumb>

The <image> and <thumb> columns must each contain a semicolon-separated list of zero or more file names which when appended to the Image URL option value will form a valid image or thumbnail URL on the source database's image server. The two columns must have the same number of values, in the same sequence, for the same image.

Example:
<image> : 015/002614.jpg;016/002614-2.jpg
<thumb> : 015/thumbs/002614.jpg;016/thumbs/002614-2.jpg

If the source record has no images, both values must be blank.

<public>
A 1 in this column indicates that the hybrid item should be public. Any other values means it is not public.
<site>

The value of this column, when appended to the Site URL option value, must form a valid URL that links to the source record's web page. If the value itself contains <hybrid-id>, AvantHybrid will replace <hybrid-id> with the value of the <hybrid-id> column when forming the URL.

Example: archive/<hybrid-id>

For this example, <hybrid-id> will get replaced so that the value of <site> becomes something like archive/B427FDC4-5A2A-42AA-A146-337349578482.

The link might not be valid if the item is private since private items may not have a source record web page.

Element names
All other columns are the names of Omeka elements and must contain values appropriate for those elements. Multiple values for the same element can be specified as a semi-colon separated list. For example, the Subject column can contain a semi-colon separated list of subject terms.

Data import

The AvantHybrid plugin imports one source record for each HTTP request it receives to add, update, or delete the corresponding hybrid item. The HTTP requests are made by a program such as the PastPerfect Exporter. There is no other mechanism for importing source records into the Digital Archive as hybrid items.

HTTP requests

The HTTP request must POST to the Digital Archive site's avant/remote page. For example:

https://yourdomain.net/digitalarchive/avant/remote

Each HTTP request must POST the following arguments:

  • id
  • password
  • action
  • options
  • data
id
The value of the id argument must match the AvantHybrid Import ID configuration option value. If the IDs don't match, AvantHybrid will deny the request.
password
The value of the password argument must match the AvantHybrid Import Password configuration option value. If the passwords don't match, AvantHybrid will deny the request.
action
The value of the action argument must be one of the actions listed in the HTTP actions section below.
options

The value of the options argument must be a comma separated list of zero or more of the following options:

  • bulk
  • trace

The trace option is for developers who want to see information about how AvantHybrid processed the request.

The bulk option is explained later in the Bulk import section.

data
The value of the data option must a plain text string containing JSON for the source record data. The data must conform to the Data format described above. An example appears below.
{'PPID': 'B427FDC4-5A2A-42AA-A146-337349578482', 'OBJECTID': '001-056-1-2161',
'OBJNAME': 'Annual Meeting report', 'TITLE': 'Annual Meeting of the Garden Club of America',
'IMAGE': '008/00105612161.jpg', 'THUMB': '008/thumbs/00105612161.jpg', 'WEBINCLUDE': '1',
'SITE': 'archive/<hybrid-id>', 'CAT': 'Archives', 'SUBJECTS': 'Gardens;History',
'DATE': '1934', 'PLACE': '', 'CREATOR': '', 'PUBLISHER': '', 'COLLECTION': '',
'DESCRIP': 'Yellow bound yearbook program with pencil reading Garden Club of Mt. Desert.'}

HTTP actions

The action argument of the HTTP request must be one of the following:

  • hybrid-fetch
  • hybrid-add
  • hybrid-update
  • hybrid-delete
  • hybrid-delete-all
hybrid-fetch
The hybrid-fetch action requests that AvantHybrid return a list of all hybrid items in the Digital Archive. The list is a JSON string containing a key/value pair for every hybrid item. The key is the hybrid item's Id and the value is the date and time when the hybrid item was added to or last updated in the Digital Archive. The example below shows a partial response to this request.
{
    "status":"OK",
    "site-id":"ahs",
    "results":
        {
            "B427FDC4-5A2A-42AA-A146-337349578482":"2020-09-15 10:41:47",
            "4DC3489E-DDB2-40F7-BA97-289319265115":"2020-09-15 13:03:12",
            "8ACFFAE1-E96A-4A88-935A-425394802117":"2020-09-15 13:03:11",
            "FEF5148F-B4B4-4261-825A-428752422927":"2020-09-15 13:03:13",
            ...
        }
}
hybrid-add
The hybrid-add action requests that AvantHybrid create a new hybrid item for the source record contained in the data argument.
hybrid-update
The hybrid-update action requests that AvantHybrid update the existing hybrid item for the source record contained in the data argument.
hybrid-delete
The hybrid-delete action requests that AvantHybrid delete the existing hybrid item for the source record contained in the data argument. The data only needs to contain the <hbrid-id> for the source record.
hybrid-delete-all

The hybrid-delete-all action requests that AvantHybrid delete every hybrid item from the Digital Archive. It will also delete any files attached to those items and remove any relationships for those items.

Use this action with caution. The only time you should use it are if you no longer want records from another database to appear in the Digital Archive.

Important: The delete all action is performed as a bulk import whether or not bulk is passed in the options argument. As such, you must rebuild the sites Elasticsearch indexes after performing this action.

For developers

The AvantHybrid's import feature is normally invoked via a remote POST request to the Digital Archive site's avant/remote page. It can also be invoked by a developer who is logged in as an administrator and makes a GET request passing the POST arguments as query string parameters as shown in the example below.

http://localhost/omeka/avant/remote?id=ahs&password=aQ75RkG9&action=hybrid-add&options=trace&debug

The debug argument makes the response appear in the browser as plain text instead of as JSON.

Request response

A request to AvantHybrid always returns a 200 response code. Any other code would mean that either the request URL was invalid (404 response code) or there was a server error (e.g. 500 response code). The response is JSON that contains three values: status, site-id, and results as shown in the example below.

{
    "status":"OK",
    "site-id":"ahs",
    "results":"Updated item 1052 for record B427FDC4-5A2A-42AA-A146-337349578482"
}

If AvantHybrid accepted the request, the value of status will be OK and the value of site-id will match the id argument passed to the request. For security purposes, the caller should verify that the IDs match. A status other than OK will indicate why the request was rejected (for example, an invalid ID, password, or action).

The results value for an accepted request is usually just an informative message indicating what action AvantHybrid performed. If trace was passed to the request in the options argument, the result may contain additional information of interest to developers. The exception is the hyrbrid-fetch request which returns a JSON string of hybrid items as the result.

Bulk import

When bulk is passed to the request in the options argument, AvantHybrid assumes that the requestor will be making repeated HTTP requests and wants them to be executed as quickly as possible. To more quickly perform an add, import, or delete action, AvantHybrid does not update the site's local and shared Elasticsearch indexes as part of the action. As such, after all of the bulk HTTP requests have been made, you must rebuild the site's Elasticsearch indexes.

The import process

As this documentation has explained, AvantHybrid only imports one source record at a time. It has no knowledge of the source database or what source records need to be added, updated, or deleted in the Digital Archive. Correct synchronization between the source database and the Digital Archive is entirely the responsibility of the program making the HTTP requests. To learn more, read about the PastPerfect Exporter.

Dependencies

The AvantHybrid plugin requires that the AvantCommon plugin be installed and activated.

In order to use the Use Common Vocabulary configuration option, the AvantVocabulary plugin must be installed and activated.

Installation

To install the AvantHybrid plugin, follow these steps:

  1. First install and activate the AvantCommon plugin.
  2. Download the latest release from https://github.com/gsoules/AvantHybrid
  3. Unzip AvantHybrid-master.zip into your Omeka plugins folder
  4. Rename the folder to AvantHybrid
  5. Activate the plugin from the Omeka Plugins page

Warning

Use this software at your own risk.
